Artefact_list

List of elements that can be browsed. the elements can be other artefacts or metrics and the list is used to list them in a synthetic view, easier to navigate.

Instances

Artefact list can be instanciated into multiple display :

• requirement_list
• requirement_coverage
• requirement_validation
• sample_list

requirement_list

This is metric instance purpose is to list the expected requirement. Most probably it wont be displayed in an other stage than scoping.

we can also have several requirement_list for different usages :

• ODD requirement list
• Functional requierement list
• Non-functional requiermeent list

Configuration

In the config object, you can include the column key to define which columns to display. If both the column key in the config and the values in the metrics are defined, the specified columns will be displayed.

   ./config.json

"metrics": [
         {
      "name":  "ODD_SPECIFICATION", "scope": "dataset","type":  "requirement_list","title": "ODD requierements",
      "description": ".....",  "tooltip": "List of ODD requierements",
      "config": {
        "columns": [
        "id",
        "description",
        "type",
        "ODRange",
        "ODDRange"
        ]

    }
    ],

Payload

    ./payload.json

{
    "metricName": "ODD_SPECIFICATION",
    "scopeId" : "ODD_Spec",
    "values": [
        {
            "id": "01", "origin" : "context",
            "description" : "Conveyor speed",
            "type" : "float",
            "ODRange"  : [0, 10], # Range of the absisse for this dimension
            "ODDRange" : [
                { "name" : "Busisness ODD Request", "range" : [2, 5], "backgroundColor": "#008000"}, # Target coverage ODD Range
                { "name" : "Forbidden ODD to monitor", [6, 8], "backgroundColor": "#ff0000"}
            ]
        },
        {
            "id": "02", "origin" : "target",
            "description" : "Part’s position",
            "type" : "enumerate",
            "ODRange"  : ["front", "back", "left"],
        },
        {
            "id": "03", "origin" : "sensor",
            "description" : "Brightness",
            "type" : "float",
            "ODRange"  : [0,255],
            "ODDRange" : [
                { "name" : "Busisness ODD Request", "range" : [80, 160], "backgroundColor": "green"}]
        }
    ]
},

Representations

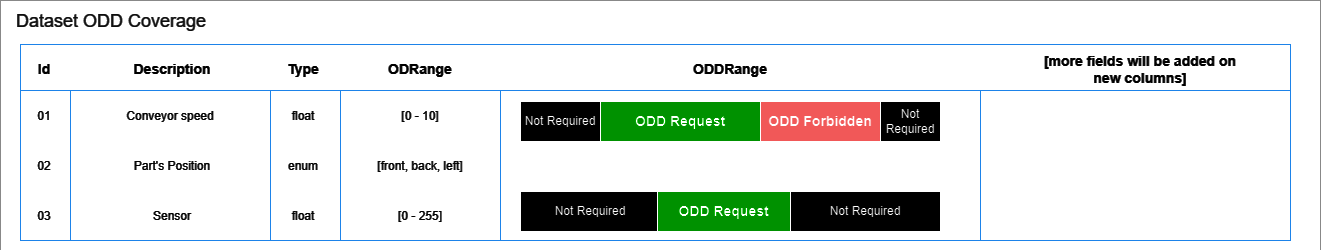

Company Level representation

A list logo to directly access the requirement_list in "Project" abstraction level.

Project Level representation

InDepth Level representation

It is the same as the project Level representation

requirement_coverage

This metric instance purpose is to list the expected requirements and the element of metric that fullfill each requirement of the list. It won't be displayed in scoping but will be in dev and maybe in operation.

Configuration

   ./config.json

"metrics": [
         {
      "name":  "ODD_COVERAGE", "scope": "dataset","type":  "requirement_coverage","title": "ODD coverage",
      "description": ".....",  "tooltip": "ODD Coverage list",
      "config": { }
    }
    ],

Payload

    ./payload.json

{
    "metricName": "ODD_COVERAGE",
    "linkedMetrics" : [{"type" : "artefact_list", "metricName" : "ODD_SPECIFICATION", "scopeId" : "ODD_Spec" }],
    "values": [
        {
            ?
        },
        {
            ?
        },
        {
            ?
        }
    ]
},

Representations

Company Level representation

Project representation

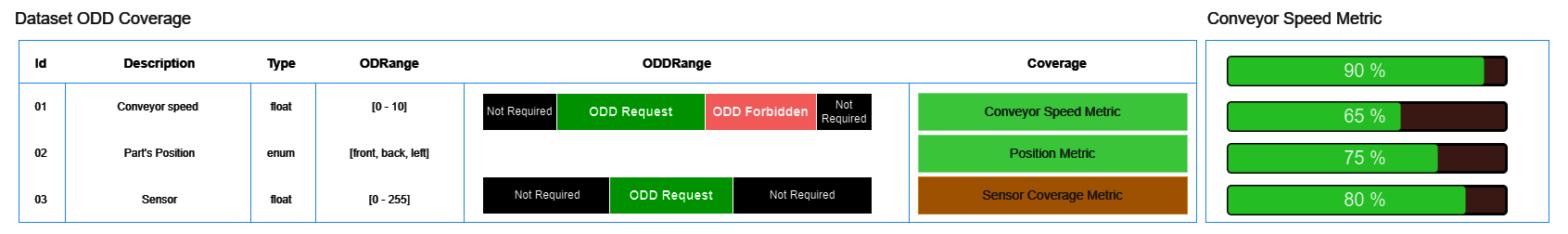

InDepth representation

Clicking one of the element in the Coverage column will display the correspond metric in the associated box on the right.

requirement_validation

This metric instance purpose is to validate the requirements and the element of metric that fullfill each requirement of the list.

Under development

sample_list

used to navigate through a dataset sample, it allows the direct manipulation of data. Generally speaking, it doesn't expect validation as its purpose is mainly informative. Although we might use it for specific purpose like validating a specific sample of data for a specific usage.

Configuration

Type configuration with specific parameter that need to be describe

In the config object, you can include the column key to define which columns to display. If both the column key in the config and the values in the metrics are defined, the specified columns will be displayed.

   ./config.json

   "metrics": [
    {
      "name":  "DATA_SAMPLE", "scope": "dataset","type":  "artefact_list","title": "Data Sample",
      "description": ".....",  "tooltip": "View a sample of data",
      "config": {
      "columns": [
        "id",
        "description",
        "comment"
      ]
      }
    },

Payload

    ./payload.json

    {
        "metricName": "DATA_SAMPLE",
        "values":  [
        {
         "id": "01",
         "origin": "target",
         "description": "Image_O1",
         "comment": "Brightness fits expectations",
         "sample": [
          {
           "id": "01",
           "type": "background",
           "raster": 1,
           "image": "http://localhost:5173/static/images/Image_Overlay_Layer_1.png"
          },
          {
           "id": "02",
           "type": "heatmap",
           "raster": 1,
           "image": "http://localhost:5173/static/images/Image_Overlay_Layer_2.png"
          },
          {
           "id": "03",
           "type": "zones",
           "raster": 0,
           "image": "http://localhost:5173/static/images/Image_Overlay_Layer_3.svg"
          }
         ]
        },
         {
          "id": "02",
          "origin": "target",
          "description": "Image_O2",
          "sample": [
           {
            "id": "01",
            "type": "background",
            "raster": 1,
            "image": "http://localhost:5173/static/images/Image_Overlay_Layer_1.png"
           }
          ]
         },
         {
          "id": "03",
          "origin": "target",
          "description": "Image_O3",
          "comment": "Annotated",
          "sample": [
           {
            "id": "01",
            "type": "background",
            "raster": 1,
            "image": "http://localhost:5173/static/images/Image_Overlay_Layer_2.png"
           }
          ]
         }
        ]

    }

In this example, the payload contains path to the image to be listed. Yet it is single layer images. We can also provide multiple layer images just like it is done in the image_overlay artefact type.

Representations

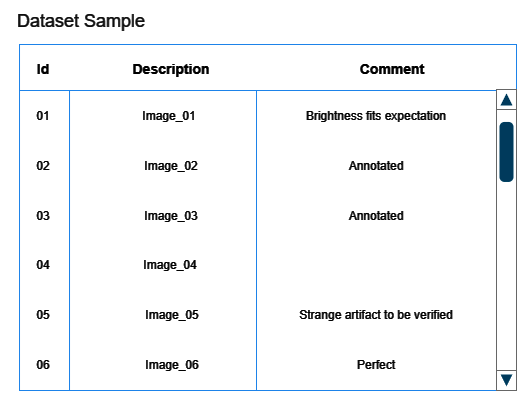

The Sample Viewer instance relies on two graphical components :

• the artefact list graphical component
• the image manipulation graphical component

the artefact list graphical component will list all the items within the data sample, allowing the selection of a specific item while the image graphical component will display the selected item and offers a few manipulation functionality.

Company level representation

An icon graphic component indicates that sample browsing is available

Project level representation

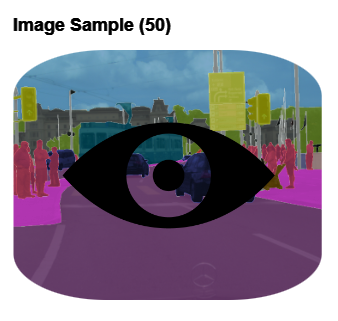

Using a static image graphical component, the number of sample element available for browsing is indicated.

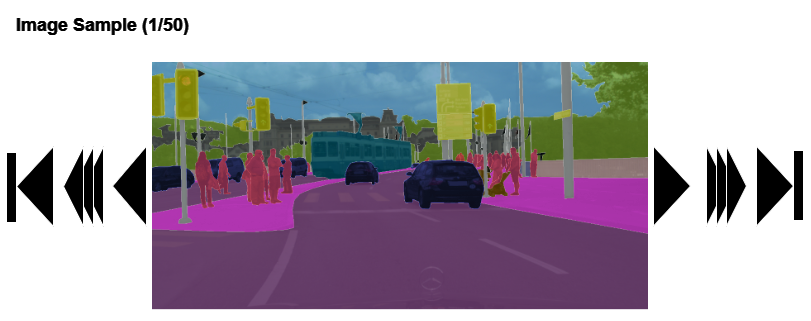

InDepth level representation

Simple functionalities regarding the list :

• clicking an item will display the content in the viewer below

Various functionalities for the sample list :

• next/previous element
• next (+10) / previous (+10) element
• first / last element
• zoom function
• pan function
• index of current element / total amount of element
• if image contains multiple layer, the possibility to active/deactivate each layer
